Infrared LED lamp beads

Becoming an LED packaging enterprise with high core value

Home Products Infrared LED lamp beads
Products

/ Products / Infrared LED lamp beads
0603 Receive PT



- Type: InfraredLED
- Specification: Surface mount

- Power:75MW

- Number of chips: Single chip

- Chip brand:

- Luminous angle:120°

- Luminous color: invisible light




Contact us
Service hotline： 0755-29042031         E-mail： led_best@163.com

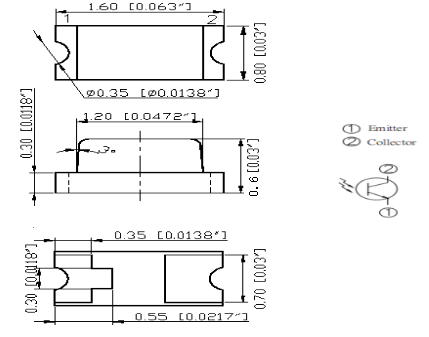

Drawing




Specifications


type number

Fengbo(nm)

Bright current（mA)



Collector emitter saturation voltageVce(SAT)(V)

 Collector emitter breakdown voltage(Vceo)

angle(deg)

electric current(mA)

0603-PT(Received)

940

0.7-4.0

0.4

30



120°


*The luminous angle of this lamp bead has other angles. Please consult customer service for detailed parameters


Application


Household appliances, medical devices, spatial optical communication, infrared cameras, fixed lasers, automatic card swiping systems for transportation, cameras, security monitoring, anti-theft alarms, infrared waterproofing, etc.
