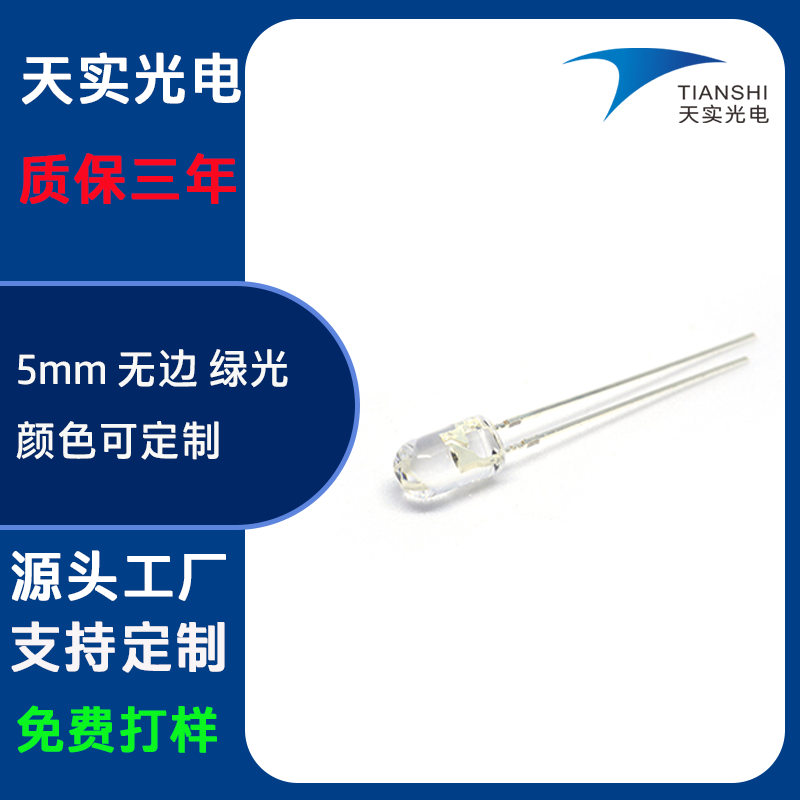

5MM Borderless Straight Insert Lamp Beads 15 °


-Type: Inline

-Specification:5MM Borderless Straight Insert Lamp Beads

-Power: 0.06W, 0.1W, 0.2W, 0.5W

-Number of chips: single core

-Chip brand: wafer

-Luminous angle: 15 ° 20 ° 30 ° 45 ° 60 °

-Glow color: red/yellow/blue/green/orange/warm white light/positive white light/cold white light/white to yellow/white to red/pink light/ice blue light




Contact us
Service hotline： 0755-29042031         E-mail： led_best@163.com


Drawing




Specifications

model colour Waveband (nm) Brightness (mcd) Voltage (vf) Angle (deg) Current (mA)
5MM Borderless Straight Insert Lamp Beads Red light 620-680 5000-20000 1.8-2.3 15° 20mA
Green light 515-530 10000-30000 2.8-3.2
Blue light 460-470 4000-15000 2.8-3.2
Yellow light 588-595 5000-20000 1.8-2.3
Orange light 600-610 5000-20000 1.8-2.3
Purple light 360-405 20-60 3.0-3.4
Ortho white 5500-7500K 10000-30000 2.8-3.4
Cold whiteness 75000-25000K 10000-30000 2.8-3.4
Warm White 2000-4500K 10000-30000 2.8-3.4
White to yellow 1600-2000K 10000-30000 2.8-3.4
White to red 618-623 4000-12000 2.8-3.4

*The luminous angle of this lamp bead has other angles. Please consult customer service for detailed parameters


Application

Luminous signs, acrylic vacuum formed characters, lightboxes, backlights, corporate storefront signs, floodlights, automotive lightingLEDLight stripLEDGuardrail pipeLEDWall washers, toys, etc
