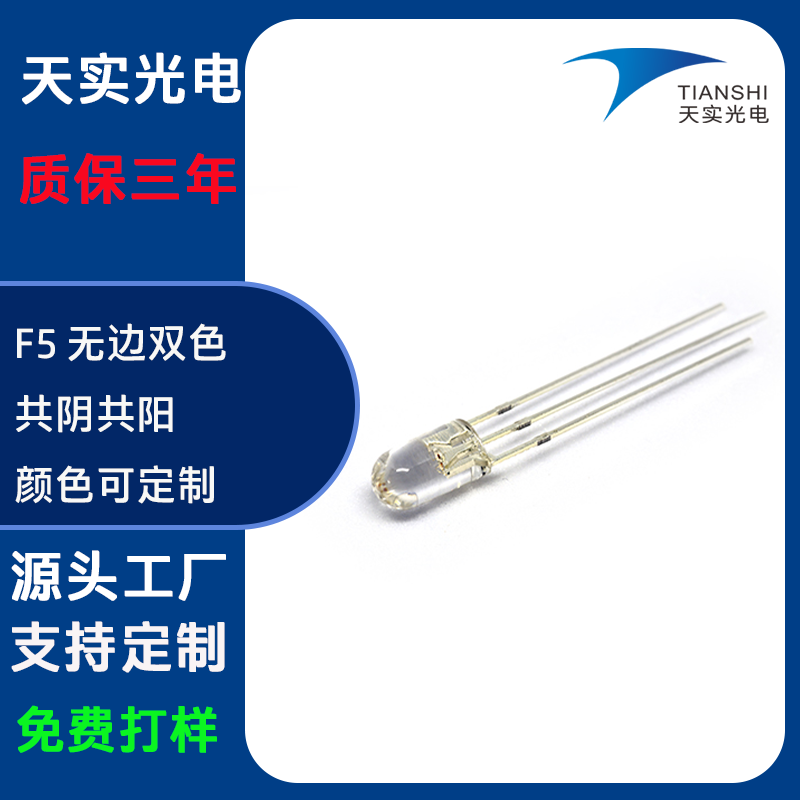

5MM Borderless Double Color


-Type: Inline

-Specification:5MM Borderless Double Color

-Power: 0.06W, 0.1W, 0.2W

-Number of chips: dual core

-Chip brand: wafer

-Luminous angle: 20 ° 30 ° 60 °

-Glow color: red/yellow/blue/green/orange




Contact us
Service hotline： 0755-29042031         E-mail： led_best@163.com


Drawing




Specifications

model colour Waveband (nm) Brightness (mcd) Voltage (vf) Angle (deg) Current (mA)
5MM Borderless Double Color Red and Yellow Red: 620-630
Yellow: 588-595		 red:1000-3000
yellow:1000-3000		 Red: 1.8-2.4
Yellow: 1.8-2.4		 40° 20mA
Red and Blue Red: 620-630
Blue: 460-470		 red:1000-3000
blue:800-2000		 Red: 1.8-2.4
Blue: 2.8-3.4
Double color red and green Red: 620-630
Green: 515-530		 red:1000-3000
green:2000-5000		 Red: 1.8-2.4
Green: 2.8-3.4
Red and Orange Red: 620-630
Orange: 600-610		 red:1000-3000
orange:1000-3000		 Red: 1.8-2.4
Orange: 1.8-2.4

*The luminous angle of this lamp bead has other angles. Please consult customer service for detailed parameters


Application

Luminous signs, acrylic vacuum formed characters, lightboxes, backlights, corporate storefront signs, floodlights, automotive lightingLEDLight stripLEDGuardrail pipeLEDWall washers, toys, etc
